267-223 | WAGO
Socket, 3 pole, push-wire connection, 1.0 mm², white/gray, 267-223
Unit Price (€ / pc.)
6.3903 € *
Standard delivery time from the manufacturer is: 4 Weeks

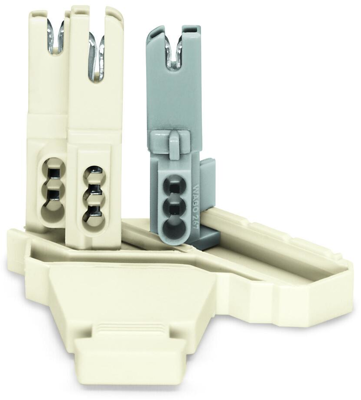

Socket, 267-223, WAGO
Female connector, without ground contact, with strain relief plate, 3-pole, 1.00 mm², white/gray.
Features
- Overvoltage category: III
- Pollution degree: 2
- Flammability class per UL94: V0
- Compact design
- Future system expansions possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 6 A | |
| Connection | push-wire connection | |
| Rated voltage IEC | 500 V | |
| Pin temperature | 105 °C | |
| Switch illuminated | No | |
| Product type | socket | |
| Type of locking | No | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Colour | white/gray | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
