787-860 | WAGO

Circuit breaker, electronic, 4 pole, T characteristic, 6 A, 24 V (DC), push-in, DIN rail, IP20, 787-860

Order No.: 43P2262
EAN: 4045454909888
MPN:
787-860
Series: 787
787-860 WAGO Device Circuit Breakers Image 1
787-860 WAGO Device Circuit Breakers Image 2
Image may differ
Unit Price (€ / pc.)
355.2864 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
355.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
355.2864 €

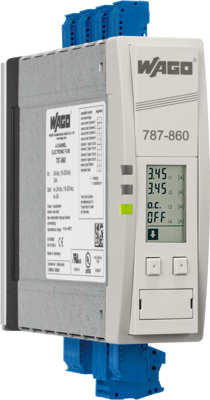

Device circuit breaker, 787-860, WAGO

The 787-860 is an electronic circuit breaker with an electrical switch designed to protect an electrical circuit from damage caused by overcurrent/overload or short circuit.

Features

  • ECB with four channels (parametrizable)
  • Time-delayed switching of channels
  • Isolated signal contact
  • Current and voltage monitoring via RS-232 interface and LCD
  • Four active signal outputs for function monitoring
Technical specifications
Filter Property Value
Pin number 4 pole
Degree of protection (IP) IP20
Rated current 6 A
Version electronic
Connection push-in
Tripping characteristics T
Rated voltage (DC) 24 V
Type of mounting DIN rail
Product type circuit breaker
Logistics
Property Value
Customs tariff number 85363010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
