787-3861/400-1000 | WAGO

Circuit breaker, electronic, 1 pole, 4 A, 24 V (DC), push-in, DIN rail, IP20, 787-3861/400-1000

Order No.: 45P7989
EAN: 4066966363555
MPN:
787-3861/400-1000
Series: 787

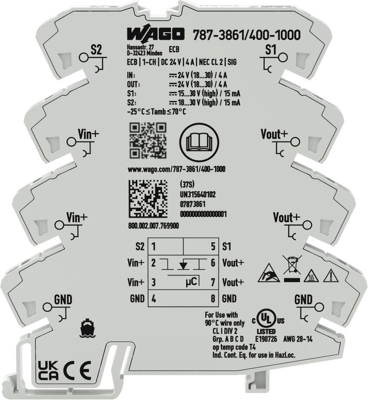

787-3861/400-1000 WAGO Device Circuit Breakers Image 1

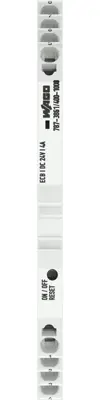

787-3861/400-1000 WAGO Device Circuit Breakers Image 2

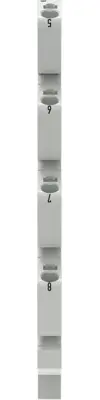

787-3861/400-1000 WAGO Device Circuit Breakers Image 3

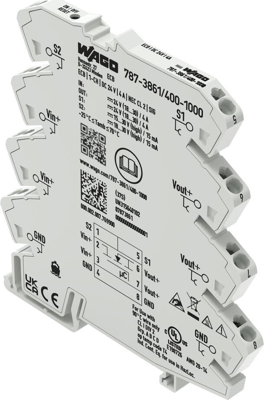

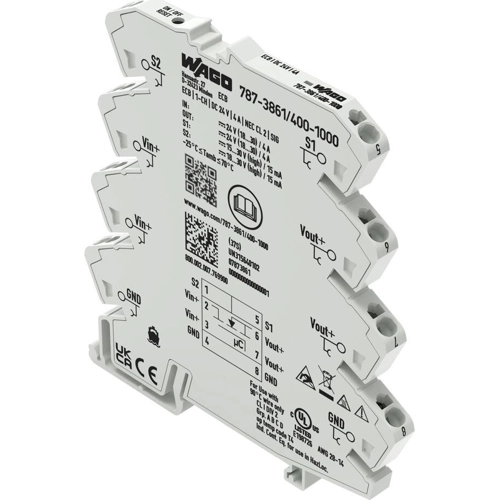

787-3861/400-1000 WAGO Device Circuit Breakers Image 4
Image may differ
Unit Price (€ / pc.)
37.6873 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
37.69 € *
Price list
Quantity
Price per unit*
1 pcs.
37.6873 €
5 pcs.
35.4263 €
10 pcs.
33.2962 €
25 pcs.
30.6306 €
*incl. VAT plus shipping costs
Subject to prior sale

Electronic circuit breaker, 787-3861/400-1000, WAGO

Electronic circuit breaker, 1-channel, 24 VDC input voltage, 4 A, NEC Class 2, signal contact.

Features

  • Space-saving ECB with one channel
  • Reliably and safely trips in the event of an overload and short circuit on the secondary side
  • Status signal - as single or group message
  • Reset, switch on/off via remote input or local switch
  • Prevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation
  • Enables the use of an economical, standard power supply
Technical specifications
Filter Property Value
Pin number 1 pole
Degree of protection (IP) IP20
Rated current 4 A
Version electronic
Connection push-in
Rated voltage (DC) 24 V
Type of mounting DIN rail
Product type circuit breaker
Logistics
Property Value
Customs tariff number 85363010
Country of origin IN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
