787-1668/106-000 | WAGO

Circuit breaker, electronic, 8 pole, T characteristic, 6 A, 24 V (DC), push-in, DIN rail, IP20, 787-1668/106-000

Order No.: 43P2210
EAN: 4050821848363
MPN:
787-1668/106-000
Series: 787

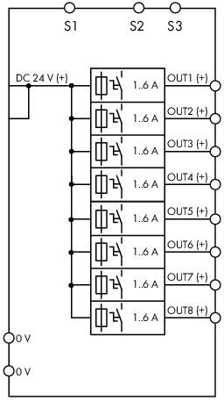

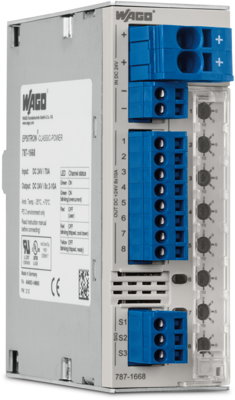

787-1668/106-000 WAGO Device Circuit Breakers Image 1
787-1668/106-000 WAGO Device Circuit Breakers Image 2
Image may differ
Unit Price (€ / pc.)
366.4724 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
366.47 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
366.4724 €

Device circuit breaker, 787-1668/106-000, WAGO

The 787-1668/106-000 is an electronic circuit breaker with an electrical switch designed to protect an electrical circuit from damage caused by overcurrent/overload or short circuit.

Features

  • Space-saving ECB with eight channels
  • Nominal current is adjustable from 1 A to 6 A
  • Time-delayed switching of channels
  • Tripped message (group signal)
  • Status message for each channel via pulse sequence
  • Remote input resets tripped channels or switches on/off any number of channels via pulse sequence
Technical specifications
Filter Property Value
Connection push-in
Version electronic
Product type circuit breaker
Degree of protection (IP) IP20
Pin number 8 pole
Rated voltage (DC) 24 V
Type of mounting DIN rail
Tripping characteristics T
Rated current 6 A
Logistics
Property Value
Customs tariff number 85363010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
