787-1664/106-011 | WAGO
Circuit breaker, electronic, 4 pole, 6 A, 24 V (DC), push-in, DIN rail, IP20, 787-1664/106-011
Unit Price (€ / pc.)
177.31 € *
Standard delivery time from the manufacturer is: 6 Weeks

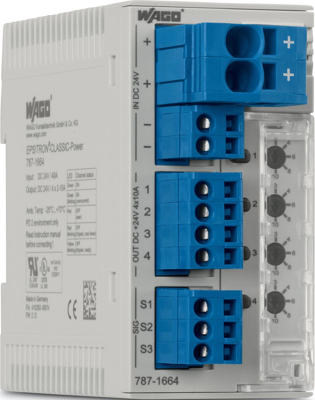

Electronic circuit breaker, 787-1664/106-011, WAGO
Electronic circuit breaker, 4-channel, 24 VDC input voltage, adjustable 1-6 A, communication capability, NPN signaling.
Features
- Space-saving ECB with four channels
- One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
- Message reports status for each channel via pulse sequence
- Group signal reports “channel switched off” and “tripped channel”
- Remote control input for switching on/off any number of channels via pulse sequence
- Remote control input for resetting all tripped channels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | circuit breaker | |
| Version | electronic | |
| Pin number | 4 pole | |
| Rated current | 6 A | |
| Rated voltage (DC) | 24 V | |
| Connection | push-in | |
| Type of mounting | DIN rail | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
