787-1664/000-080 | WAGO

Circuit breaker, electronic, 4 pole, 10 A, 24 V (DC), push-in, DIN rail, IP20, 787-1664/000-080

Order No.: 45P7995
EAN: 4055143899239
MPN:
787-1664/000-080
Series: 787

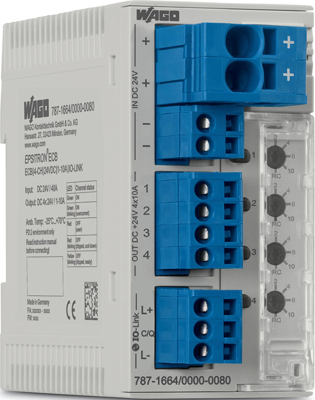

787-1664/000-080 WAGO Device Circuit Breakers Image 1

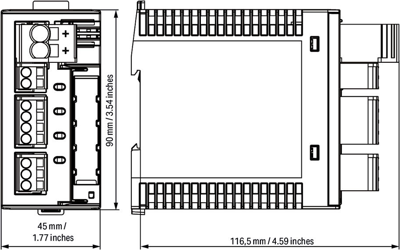

787-1664/000-080 WAGO Device Circuit Breakers Image 2
Image may differ
Unit Price (€ / pc.)
203.49 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
203.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
203.49 €

Electronic circuit breaker, 787-1664/000-080, WAGO

Electronic circuit breaker, 4-channel, 24 VDC input voltage, adjustable 1-10 A, IO-Link.

Features

  • Space-saving ECB with four channels
  • One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
  • Time-delayed switching of channels
  • Status message and current measurement of each individual channel via IO-Link interface
  • Switch on/off each channel separately via IO-Link interface
Technical specifications
Filter Property Value
Pin number 4 pole
Degree of protection (IP) IP20
Rated current 10 A
Version electronic
Connection push-in
Rated voltage (DC) 24 V
Type of mounting DIN rail
Product type circuit breaker
Logistics
Property Value
Customs tariff number 85363010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
