787-1664/000-011 | WAGO

Circuit breaker, electronic, 4 pole, 10 A, 24 V (DC), push-in, DIN rail, IP20, 787-1664/000-011

Order No.: 45P7997
EAN: 4055143727686
MPN:
787-1664/000-011
Series: 787

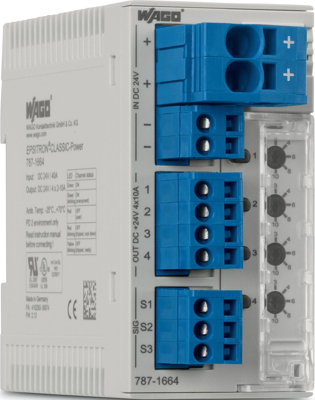

787-1664/000-011 WAGO Device Circuit Breakers Image 1

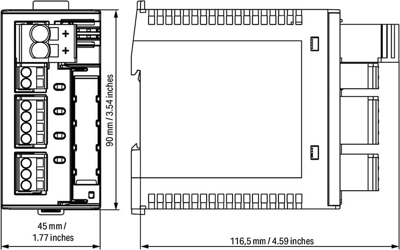

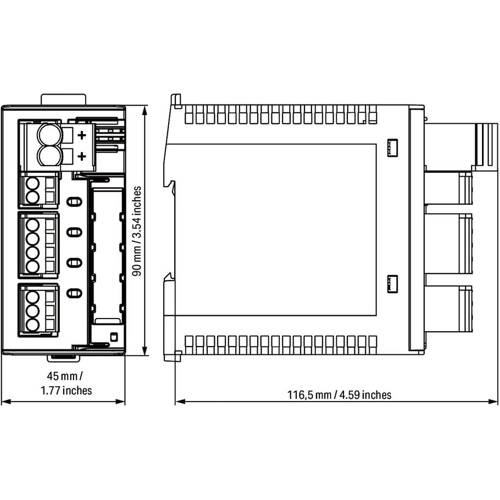

787-1664/000-011 WAGO Device Circuit Breakers Image 2
Image may differ
Unit Price (€ / pc.)
177.31 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
177.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
177.31 €

Electronic circuit breaker, 787-1664/000-011, WAGO

Electronic circuit breaker, 4-channel, 24 VDC input voltage, adjustable 2-10 A, communication capability, NPN signaling.

Features

  • ECB with four channels (parametrizable)
  • One illuminated, three-colored button per channel simplifies switching (on/off), resetting, and on-site diagnostics
  • Message reports status for each channel via pulse sequence
  • Group signal reports “channel switched off” and “tripped channel”
  • Remote control input for switching on/off any number of channels via pulse sequence
  • Remote control input for resetting all tripped channels
Technical specifications
Filter Property Value
Pin number 4 pole
Degree of protection (IP) IP20
Rated current 10 A
Version electronic
Connection push-in
Rated voltage (DC) 24 V
Type of mounting DIN rail
Product type circuit breaker
Logistics
Property Value
Customs tariff number 85363010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
