787-1662/006-1000 | WAGO

Circuit breaker, electronic, 2 pole, T characteristic, 6 A, 24 V (DC), push-in, DIN rail, IP20, 787-1662/006-1000

Order No.: 43P2192
EAN: 4050821848325
MPN:
787-1662/006-1000
Series: 787

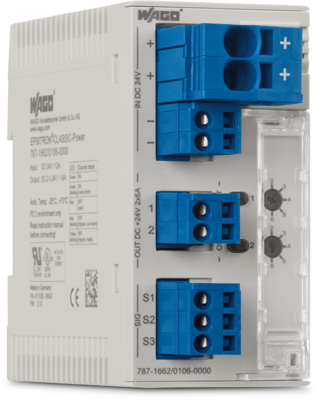

787-1662/006-1000 WAGO Device Circuit Breakers Image 1
787-1662/006-1000 WAGO Device Circuit Breakers Image 2
Image may differ
Unit Price (€ / pc.)
207.9525 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
207.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
207.9525 €

Device circuit breaker, 787-1662/006-1000, WAGO

The 787-1662/006-1000 is an electronic circuit breaker with an electrical switch designed to protect an electrical circuit from damage caused by overcurrent/overload or short circuit.

Features

  • Space-saving ECB with two channels
  • Nominal current is adjustable from 0.5 A to 6 A
  • Time-delayed switching of channels
  • Tripped message (group signal)
  • Active current limitation
  • Status message for each channel via pulse sequence
  • Remote input resets tripped channels or switches on/off any number of channels via pulse sequence
Technical specifications
Filter Property Value
Pin number 2 pole
Degree of protection (IP) IP20
Rated current 6 A
Version electronic
Connection push-in
Tripping characteristics T
Rated voltage (DC) 24 V
Type of mounting DIN rail
Product type circuit breaker
Logistics
Property Value
Customs tariff number 85363010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
