858-324 | WAGO
Coupling relay 2 Form C (NO/NC), 24 V (DC), 12 A, 250 V (AC), 858-324
Unit Price (€ / pc.)
34.9265 € *
Available: 3 pcs.
Total Price:
34.93 € *
Price list
Quantity
Price per unit*
1 pcs.
34.9265 €
10 pcs.
33.5223 €
25 pcs.
31.8563 €
50 pcs.
30.2617 €
*incl. VAT plus shipping costs
Subject to prior sale

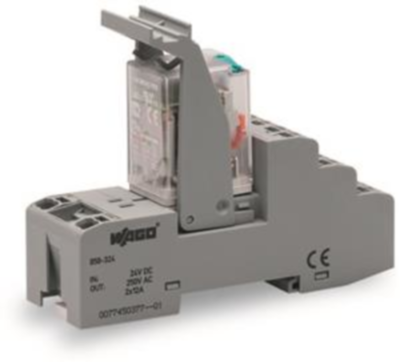

Relay module, 858-324, WAGO
Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 12 A, with manual operation, Red status indicator, Module width: 31 mm, 1.50 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Rated voltage (AC) | 250 V | |
| Rated current | 12 A | |
| Contact type | 2 Form C (NO/NC) | |
| Connection | push-in | |
| Product type | coupling relay | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
