857-727 | WAGO

Solid-state relay module 1 Form A (N/O), 115 V (DC), 115 V (AC), 3 A, 857-727

Order No.: 44P9748
EAN: 4045454835569
MPN:
857-727
Series: 857

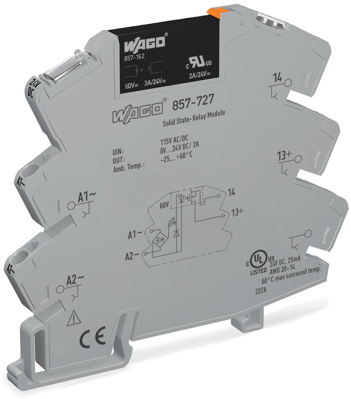

857-727 WAGO Coupling Relays Image 1
857-727 WAGO Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
47.60 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1,190.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
47.60 €

Solid-state relay module, 857-727, WAGO

Solid-state relay module, Nominal input voltage: 115 V AC/DC, Output voltage range: 0-30 VDC, Limiting continuous current: 3 A, 2-wire connection, yellow status indicator, module width: 6 mm, gray.

Technical specifications
Filter Property Value
Degree of protection (IP) IP20
Coil voltage (DC) 115 V
Connection push-in clamp
Coil voltage (AC) 115 V
Contact type 1 Form A (N/O)
Rated current 3 A
Product type solid-state relay module
Status display LED, yellow
LED display Yes
Logistics
Property Value
Country of origin DE
Customs tariff number 85365005
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
