857-707 | WAGO
Solid-state relay module 1 Form A (N/O), 115 V (DC), 115 V (AC), 0.1 A, 857-707
Unit Price (€ / pc.)
40.46 € *
Standard delivery time from the manufacturer is: 3 Weeks

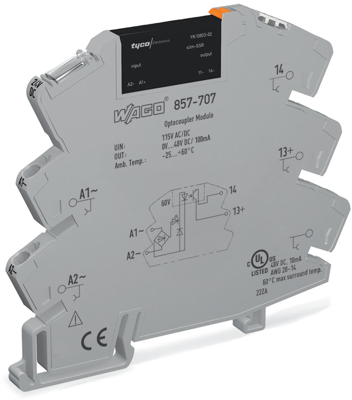

Solid-state relay module, 857-707, WAGO
Solid-state relay module, Nominal input voltage: 115 V AC/DC, Output voltage range: 0-48 VDC, Limiting continuous current: 0.1 A, 2-wire connection, yellow status indicator, module width: 6 mm, gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 115 V | |
| Rated current | 0.1 A | |
| Status display | LED, yellow | |
| Coil voltage (AC) | 115 V | |
| Contact type | 1 Form A (N/O) | |
| LED display | Yes | |
| Connection | push-in clamp | |
| Degree of protection (IP) | IP20 | |
| Product type | solid-state relay module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365005 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
