857-364 | WAGO
Coupling relay 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 6 A, 250 V (AC), 857-364
Unit Price (€ / pc.)
31.5469 € *
Standard delivery time from the manufacturer is: 3 Weeks

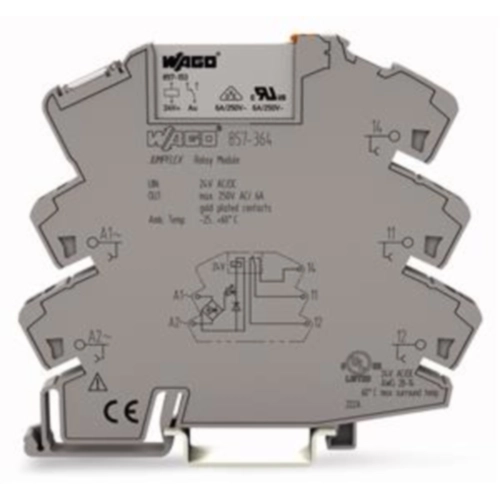

Relay module, 857-364, WAGO
Relay module, Nominal input voltage: 24 V AC/DC, 1 changeover contact, Limiting continuous current: 6 A, with gold contacts, Yellow status indicator, Module width: 6 mm.
Technical specifications
| Connection | push-in | |
| Product type | coupling relay | |
| Contact material | AgNi + Au | |
| Coil voltage (DC) | 24 V | |
| Coil voltage (AC) | 24 V | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 6 A | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
