788-390 | WAGO
Coupling relay 2 Form C (NO/NC), 24 V (DC), 8 A, 250 V (AC), 788-390
Unit Price (€ / pc.)
23.919 € *
Standard delivery time from the manufacturer is: 3 Weeks

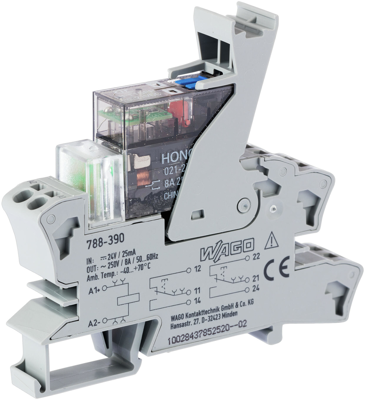

Relay module, 788-390, WAGO
Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 8 A, Railway, Red status indicator, Module width: 15 mm.
Technical specifications
| Connection | push-in | |
| Product type | coupling relay | |
| Contact material | AgNi | |
| Coil voltage (DC) | 24 V | |
| Contact type | 2 Form C (NO/NC) | |
| Rated current | 8 A | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
