288-504 | WAGO

Relay module 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 1100 Ω, 6 A, 288-504

Order No.: 44P9724
EAN: 4055143559119
MPN:
288-504
Series: 288
288-504 WAGO Coupling Relays
Image may differ
Unit Price (€ / pc.)
57.1200 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
57.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
57.1200 €

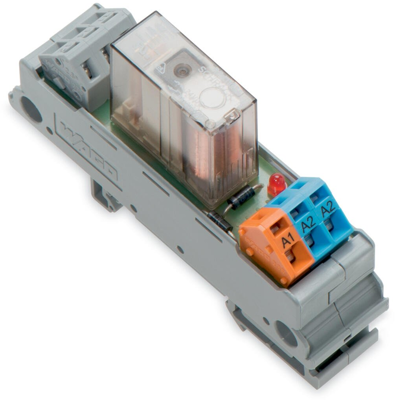

Relay module, 288-504, WAGO

Relay module, Nominal input voltage: 24 V AC/DC, 1 changeover contact, Limiting continuous current: 6 A, red status indicator, module width: 21 mm, 2.50 mm², gray.

Technical specifications
Filter Property Value
Contact material AgNi 90/10
Coil resistance 1100 Ω
Status display LED, red
Contact type 1 Form C (NO/NC)
Rated current 6 A
Connection cage clamp
LED display Yes
Coil voltage (DC) 24 V
Coil voltage (AC) 24 V
Product type relay module
Logistics
Property Value
Customs tariff number 85364900
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
