2042-7604 | WAGO
Solid-state relay module 1 Form A (N/O), 24 V (DC), 5 A, 2042-7604
Unit Price (€ / pc.)
60.69 € *
Standard delivery time from the manufacturer is: 3 Weeks

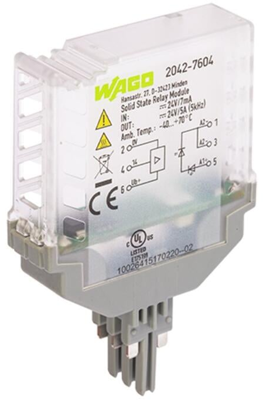

Solid-state relay module, 2042-7604, WAGO
Solid-state relay module, Nominal input voltage: 24 VDC, Output voltage range: 16.8-30 VDC, Limiting continuous current: 5 A, 3-wire connection/high-side switching, railway, Frequency: 5 kHz, green status indicator, module width: 15 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | Yes | |
| Status display | LED, green | |
| Contact type | 1 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Connection | plug-in connection | |
| Rated current | 5 A | |
| Coil voltage (DC) | 24 V | |
| Product type | solid-state relay module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365005 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
