2042-3024 | WAGO

Relay module 4 Form A (N/O), 24 V (DC), 854.09 Ω, 5 A, 2042-3024

Order No.: 44P9745
EAN: 4055143651691
MPN:
2042-3024
Series: 2042

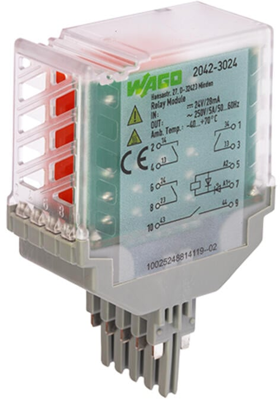

2042-3024 WAGO Coupling Relays Image 1
2042-3024 WAGO Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
77.35 € *
Available: 4 pcs.
Total Price:
77.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
77.35 €

Relay module, 2042-3024, WAGO

Relay module, Nominal input voltage: 24 VDC, 4 make contacts, Limiting continuous current: 5 A, Railway, green status indicator, module width: 25 mm.

Technical specifications
Filter Property Value
Coil voltage (DC) 24 V
Rated current 5 A
Status display LED, green
Coil resistance 854.09 Ω
Contact type 4 Form A (N/O)
LED display Yes
Connection plug-in connection
Degree of protection (IP) IP20
Product type relay module
Contact material AgNi
Logistics
Property Value
Customs tariff number 85364900
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
