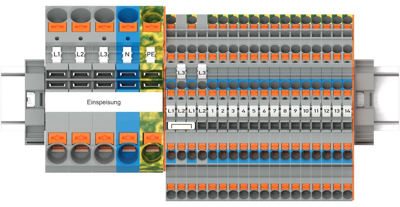

Main distribution board set, 821-111, WAGO

This product is suitable for a main distribution board with separate RDC/LS switches for each circuit; includes all required components for wiring supply terminal blocks and connecting 14 AC circuits and two three-phase circuits. Connection of L- and N-conductors for RDC/LS switches to the circuits via multilevel installation terminal blocks without disconnection possibility; separation of N-potentials for insulation resistance measurement via RCD/LS switches.

Scope of delivery

• 16 x multilevel installation terminal block; NT/L/PE; 4 mm² (2203-7641)
• 2 x multilevel installation terminal block; L/L; 4 mm² (2203-7642)
• 1 x end and intermediate plate (2203‑7692)
• 3 x 2-conductor supply terminal block for distribution boxes; gray; 16 mm² (2016‑7601)
• 1 x 2-conductor supply terminal block for distribution boxes; blue; 16 mm² (2016‑7604)
• 1 x 2-conductor ground terminal block; green-yellow; 16 mm² (2016‑7607)
• 1 x end and intermediate plate (2016‑7692)
• 2 x screwless end stop; 10 mm wide (249‑117)
• 1 x marking strip; white; 0.5 m (2009-110)
• 1 x WMB marker card; 1 … 50 (793‑5566)
• 1 x WMB marker card; L1, L2, L3, N, PE (793‑5472)
• 1 x felt-tip pen (210‑110)
