869-241 | WAGO

Terminal block compact block, 11 pole, pitch 5 mm, 0.08-2.5 mm², AWG 28-12, 24 A, 500 V, spring-cage connection, 869-241

Order No.: 45P2576
EAN: 4044918482271
MPN:
869-241
Series: 869
869-241 WAGO Connecting Blocks
Image may differ
Unit Price (€ / pc.)
12.8996 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
12.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.8996 €

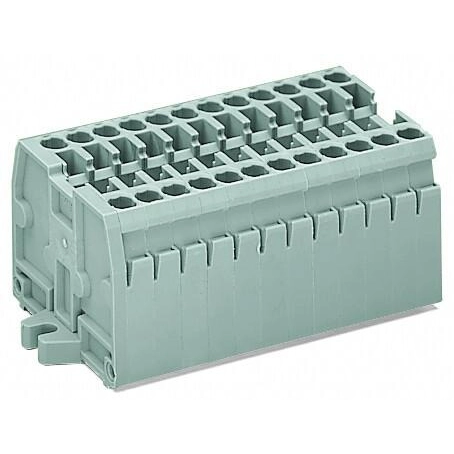

Through terminal block, 869-241, WAGO

Our through terminal block 869-241 is designed for seamless electrical installations. Our mini rail-mount terminal blocks are the perfect choice when space is limited. A large selection of mounting and actuation variants means you can find a suitable mini terminal block for every purpose. This also means you can adapt the terminal blocks to your unique requirements. Our mini rail-mount terminal block is rated for 500 V and is designed for use with a rated current of up to 24 A. Strip lengths must be between 6 mm and 7 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with CAGE CLAMP, this connector is highly versatile. Our CAGE CLAMP connection provides a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the conductor type, this through terminal block is ideal for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It features one level and twenty-two clamping points for connecting eleven potentials / 11 poles. The light gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. Conductors made of copper can be connected thanks to front-entry wiring.

Technical specifications
Pin number 11 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 500 V
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Grid 5 mm
Rated current 24 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
