869-204 | WAGO

Terminal block compact block, 4 pole, pitch 5 mm, 0.08-2.5 mm², AWG 28-12, 24 A, 500 V, spring-cage connection, 869-204

Order No.: 45P2558
EAN: 4044918481748
MPN:
869-204
Series: 869

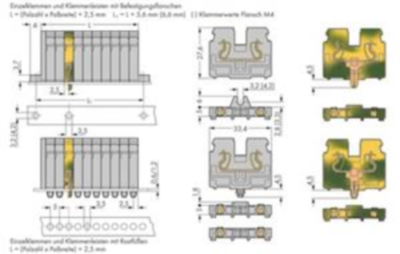

869-204 WAGO Connecting Blocks Image 1
869-204 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.2598 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.2598 €

Through terminal block, 869-204, WAGO

Connect conductors quickly and safely with this through terminal block 869-204. Our mini rail-mount terminal blocks are the perfect choice when space is limited. A large selection of mounting and actuation variants means you can find a suitable mini terminal block for every purpose. This also means you can adapt the terminal blocks to your unique requirements. Our mini rail-mount terminal block is rated for 500 V and is designed for use with a rated current of up to 24 A. Strip lengths must be between 6 mm and 7 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes CAGE CLAMP. Our CAGE CLAMP connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the conductor type, this through terminal block is designed for conductor cross sections ranging from 0.08 mm² to 2.5 mm². Up to four potentials / four poles can be connected to this terminal strip using eight clamping points on one level. The gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. The front-entry wiring makes it possible to connect copper conductors.

Technical specifications
Pin number 4 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 500 V
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Grid 5 mm
Rated current 24 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
