862-9693 | WAGO

4-wire device connection terminal, 3 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-9693

Order No.: 45P2509
EAN: 4044918511315
MPN:
862-9693
Series: 862

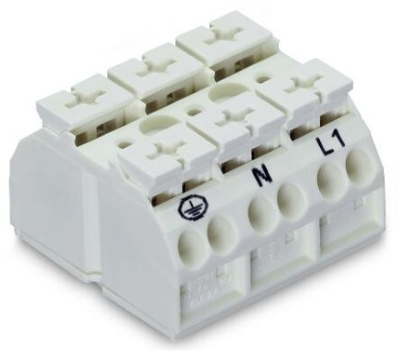

862-9693 WAGO Connecting Blocks Image 1
862-9693 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.2134 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2134 €

Chassis-mount terminal strip, 862-9693, WAGO

Enjoy easy electrical installations with this chassis-mount terminal strip 862-9693. Strip lengths must be between 10 mm and 11 mm when connecting conductors to this chassis-mount terminal strip. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. This chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². You can connect three potentials / three poles using the twelve clamping points. The white housing is made of polyamide (PA66) for insulation.

Technical specifications
Pin number 3 pole
Cable cross-section 0.5-4.0 mm²
Rated voltage 500 V
AWG cross-section AWG 20-12
Contact connection push-in
Grid 12 mm
Rated current 32 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
