862-9625 | WAGO

4-wire device connection terminal, 5 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-9625

Order No.: 45P2506
EAN: 4044918511179
MPN:
862-9625
Series: 862

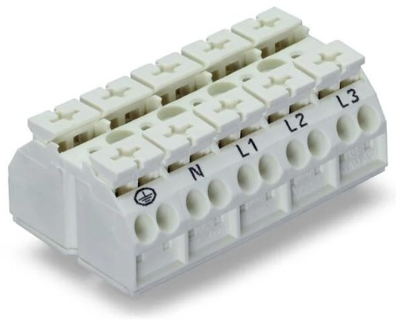

862-9625 WAGO Connecting Blocks Image 1
862-9625 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.5938 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.5938 €

Chassis-mount terminal strip, 862-9625, WAGO

This chassis-mount terminal strip 862-9625 simplifies electrical installations. Strip lengths must be between 10 mm and 11 mm when connecting conductors to this chassis-mount terminal strip. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Depending on the conductor type, this chassis-mount terminal strip is designed for conductor cross sections ranging from 0.5 mm² to 4 mm². Five potentials can connect five poles using the twenty clamping points The white housing is made of polyamide (PA66) for insulation.

Technical specifications
Filter Property Value
Grid 12 mm
Pin number 5 pole
Rated current 32 A
Cable cross-section 0.5-4.0 mm²
AWG cross-section AWG 20-12
Rated voltage 500 V
Contact connection push-in
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
