862-525 | WAGO

4-wire device connection terminal, 5 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-525

Order No.: 45P2458
EAN: 4044918509091
MPN:
862-525
Series: 862

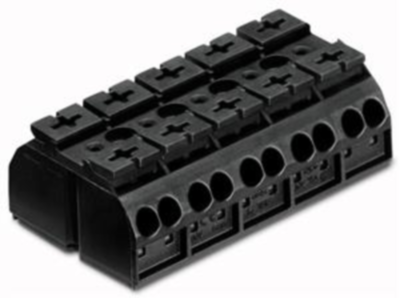

862-525 WAGO Connecting Blocks Image 1
862-525 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.4272 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4272 €

Chassis-mount terminal strip, 862-525, WAGO

This chassis-mount terminal strip 862-525) provides seamless electrical installations. Conductors should only be connected to this chassis-mount terminal strip if their strip length is between 10 mm and 11 mm. This product features conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be pushed in without needing to use any tools—all thanks to its pluggable design. This chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². Five potentials can connect five poles using the twenty clamping points The black housing is made of polyamide (PA66) for insulation.

Technical specifications
Filter Property Value
Grid 12 mm
Pin number 5 pole
Rated current 32 A
Cable cross-section 0.5-4.0 mm²
AWG cross-section AWG 20-12
Rated voltage 500 V
Contact connection push-in
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
