862-505 | WAGO

4-wire device connection terminal, 5 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-505

Order No.: 43P2632
EAN: 4044918509060
MPN:
862-505
Series: 862

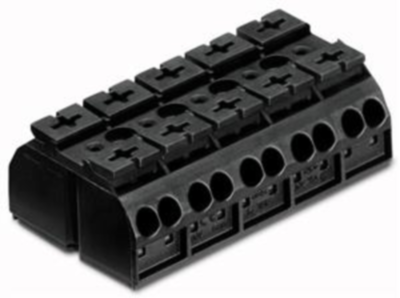

862-505 WAGO Connecting Blocks Image 1
862-505 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.4272 € *
Available: 98 pcs.
Total Price:
3.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4272 €

Chassis-mount terminal strip, 862-505, WAGO

This chassis-mount terminal strip 862-505) provides seamless electrical installations. Ensure that the strip lengths are between 10 mm and 11 mm when connecting conductors to this chassis-mount terminal strip. This product features conductor terminals and utilizes Push-in CAGE CLAMP. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Depending on the conductor type, this chassis-mount terminal strip is ideal for conductor cross sections ranging from 0.5 mm² to 4 mm². Up to five potentials / five poles can be connected to this terminal strip using twenty clamping points. The black housing is made of polyamide (PA66) for insulation.

Technical specifications
Filter Property Value
Grid 12 mm
Pin number 5 pole
Cable cross-section 0.5-4.0 mm²
Contact connection push-in
Rated current 32 A
Rated voltage 500 V
AWG cross-section AWG 20-12
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
