862-2534 | WAGO

4-wire device connection terminal, 4 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-2534

Order No.: 45P2440
EAN: 4044918510103
MPN:
862-2534
Series: 862

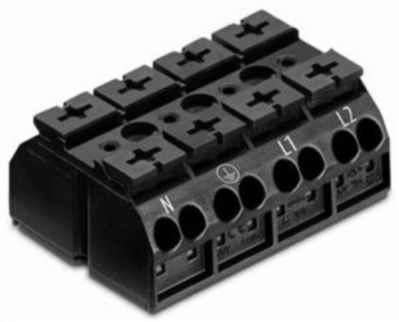

862-2534 WAGO Connecting Blocks Image 1
862-2534 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.7489 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.7489 €

Chassis-mount terminal strip, 862-2534, WAGO

Enjoy fault-free electrical installations with this chassis-mount terminal strip 862-2534. Ensure that the strip lengths are between 10 mm and 11 mm when connecting conductors to this chassis-mount terminal strip. Featuring conductor terminals along with Push-in CAGE CLAMP, this product outperforms the competition. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². You can connect four potentials / four poles using the sixteen clamping points. The black housing is made of polyamide (PA66) for insulation.

Technical specifications
Pin number 4 pole
Cable cross-section 0.5-4.0 mm²
Rated voltage 500 V
AWG cross-section AWG 20-12
Contact connection push-in
Grid 12 mm
Rated current 32 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
