862-2505 | WAGO

4-wire device connection terminal, 5 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-2505

Order No.: 45P2435
EAN: 4044918509961
MPN:
862-2505
Series: 862

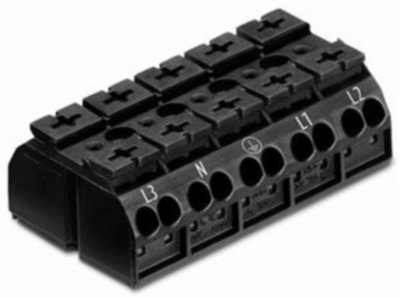

862-2505 WAGO Connecting Blocks Image 1
862-2505 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.4272 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4272 €

Chassis-mount terminal strip, 862-2505, WAGO

Our chassis-mount terminal strip 862-2505 is designed for seamless electrical installations. Strip lengths must be between 10 mm and 11 mm when connecting conductors to this chassis-mount terminal strip. Featuring conductor terminals along with Push-in CAGE CLAMP, this connector outperforms the competition. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. Depending on the type of conductor, this chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². Up to five potentials / five poles can be connected to this terminal strip using twenty clamping points. The black housing is made of polyamide (PA66) for insulation.

Technical specifications
Filter Property Value
Rated current 32 A
Rated voltage 500 V
Grid 12 mm
AWG cross-section AWG 20-12
Cable cross-section 0.5-4.0 mm²
Pin number 5 pole
Contact connection push-in
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
