862-1694 | WAGO

4-wire device connection terminal, 4 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, 32 A, 500 V, push-in, 862-1694

Order No.: 45P2431
EAN: 4044918509855
MPN:
862-1694
Series: 862

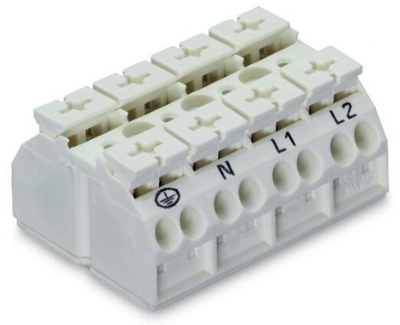

862-1694 WAGO Connecting Blocks Image 1

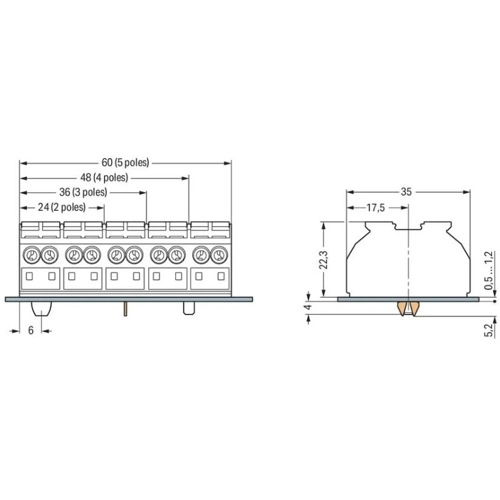

862-1694 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.7489 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.7489 €

Chassis-mount terminal strip, 862-1694, WAGO

This chassis-mount terminal strip 862-1694 is designed for hassle-free electrical installations. Conductors should only be connected to this chassis-mount terminal strip if their strip length is between 10 mm and 11 mm. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the type of conductor, this chassis-mount terminal strip is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². You can connect four potentials / four poles using the sixteen clamping points. The white housing is made of polyamide (PA66) for insulation.

Technical specifications
Pin number 4 pole
Cable cross-section 0.5-4.0 mm²
Rated voltage 500 V
AWG cross-section AWG 20-12
Contact connection push-in
Grid 12 mm
Rated current 32 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
