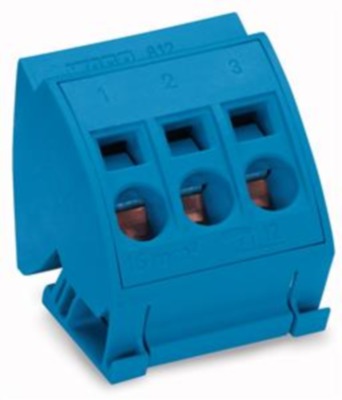

Terminal block, 3 pole, 1.5-16 mm², AWG 14-6, 96 A, 1000 V, spring-cage connection, 812-114
Common potential terminal block, 812-114, WAGO
Our common potential terminal block 812-114 simplifies electrical installations. Ensure that the strip lengths are 12 mm when connecting conductors to this common potential terminal block. Featuring conductor terminals along with CAGE CLAMP, this product delivers reliable performance. Our CAGE CLAMP connection offers a dependable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The item's dimensions are 38 x 42.5 x 43.5 mm (width x height x depth. This common potential terminal block is suitable for conductor cross sections ranging from 1.5 mm² to 16 mm². It has one level. The single potential can connect using the three clamping points The blue housing is made of polyamide (PA66) for insulation.
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Cable cross-section | 1.5-16 mm² | |
| Rated voltage | 1000 V | |
| AWG cross-section | AWG 14-6 | |
| Contact connection | spring-cage connection | |
| Rated current | 96 A |
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
