812-113 | WAGO

Terminal block, 3 pole, 1.5-16 mm², AWG 14-6, 96 A, 1000 V, spring-cage connection, 812-113

Order No.: 45P1907
EAN: 4045454014919
MPN:
812-113
Series: 812
812-113 WAGO Connecting Blocks

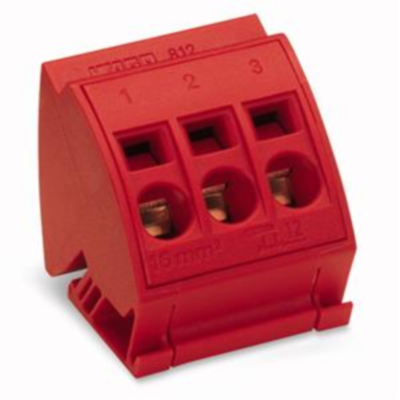

Image may differ
Unit Price (€ / pc.)
9.6271 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.6271 €

Common potential terminal block, 812-113, WAGO

Our common potential terminal block 812-113 simplifies electrical installations. Ensure that the strip lengths are 12 mm when connecting conductors to this common potential terminal block. This product features conductor terminals and utilizes CAGE CLAMP. Our proven universal connection known as CAGE CLAMP leads the way when it comes to connection technology and electrical interconnections. The item's dimensions are 38 x 42.5 x 43.5 mm (width x height x depth. Depending on the conductor type, this common potential terminal block is ideal for conductor cross sections ranging from 1.5 mm² to 16 mm². It has one level. The single potential can connect using the three clamping points The red housing is made of polyamide (PA66) for insulation.

Technical specifications
Pin number 3 pole
Cable cross-section 1.5-16 mm²
Rated voltage 1000 V
AWG cross-section AWG 14-6
Contact connection spring-cage connection
Rated current 96 A
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
