812-112 | WAGO
Terminal block, 3 pole, 1.5-16 mm², AWG 14-6, 96 A, 1000 V, spring-cage connection, 812-112

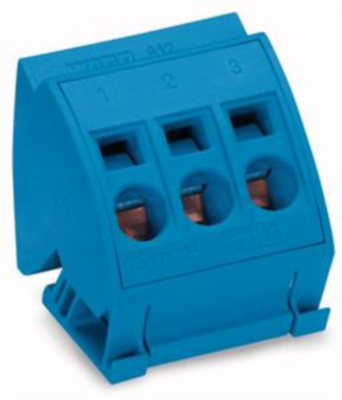

Common potential terminal block, 812-112, WAGO
Our common potential terminal block 812-112 is the perfect way to connect conductors quickly and securely. Ensure that the strip lengths are 12 mm when connecting conductors to this common potential terminal block. Featuring conductor terminals along with CAGE CLAMP, this product outperforms the competition. Our highly-rated and maintenance-free CAGE CLAMP connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. The item's dimensions are 38 x 42.5 x 43.5 mm (width x height x depth. This common potential terminal block is suitable for conductor cross sections ranging from 1.5 mm² to 16 mm². It has one level. You can connect a single potential using the three clamping points. The dark gray housing is made of polyamide (PA66) for insulation.
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Cable cross-section | 1.5-16 mm² | |
| Rated voltage | 1000 V | |
| AWG cross-section | AWG 14-6 | |
| Contact connection | spring-cage connection | |
| Rated current | 96 A |
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
