812-111 | WAGO

Terminal block, 3 pole, 1.5-16 mm², AWG 14-6, 96 A, 1000 V, spring-cage connection, 812-111

Order No.: 45P1905
EAN: 4045454014896
MPN:
812-111
Series: 812
812-111 WAGO Connecting Blocks

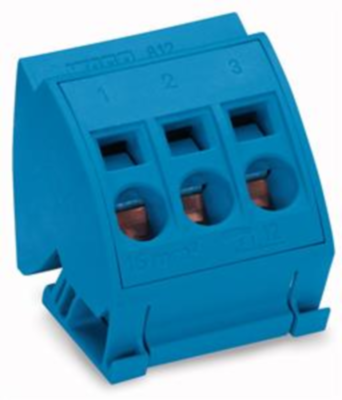

Image may differ
Unit Price (€ / pc.)
9.6271 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.6271 €

Common potential terminal block, 812-111, WAGO

Our common potential terminal block 812-111 simplifies electrical installations. Strip lengths must be 12 mm when connecting conductors to this common potential terminal block. Featuring conductor terminals along with CAGE CLAMP, this product outperforms the competition. Our CAGE CLAMP connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The item's dimensions are 38 x 42.5 x 43.5 mm (width x height x depth. Depending on the type of conductor, this common potential terminal block is ideal for conductor cross sections ranging from 1.5 mm² to 16 mm². It has one level. You can connect a single potential using the three clamping points. The light gray housing is made of polyamide (PA66) for insulation.

Technical specifications
Pin number 3 pole
Cable cross-section 1.5-16 mm²
Rated voltage 1000 V
AWG cross-section AWG 14-6
Contact connection spring-cage connection
Rated current 96 A
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
