812-104 | WAGO

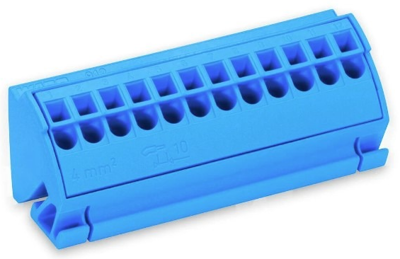

Common potential terminal block, 812-104, WAGO

Connect conductors quickly and securely with this common potential terminal block 812-104. Strip lengths must be 11 mm when connecting conductors to this common potential terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP, this product is highly versatile. Push-in CAGE CLAMP technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The item's dimensions are 75 x 30 x 27.5 mm (width x height x depth. This common potential terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². It has one level. You can connect a single potential using the twelve clamping points. The blue housing is made of polyamide (PA66) for insulation.
