812-103 | WAGO

Terminal block, 12 pole, 0.5-4.0 mm², AWG 20-12, 96 A, 1000 V, push-in, 812-103

Order No.: 45P1902
EAN: 4044918253284
MPN:
812-103
Series: 812
812-103 WAGO Connecting Blocks
Image may differ
Unit Price (€ / pc.)
9.2344 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.2344 €

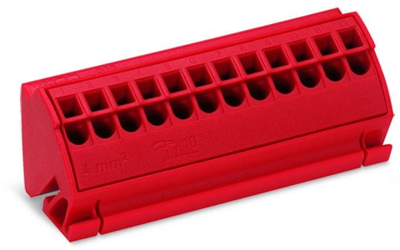

Common potential terminal block, 812-103, WAGO

This common potential terminal block 812-103 streamlines wire connections, making them both quick and easy. Ensure that the strip lengths are 11 mm when connecting conductors to this common potential terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. The item's dimensions are 75 x 30 x 27.5 mm (width x height x depth. Depending on the conductor type, this common potential terminal block is designed for conductor cross sections ranging from 0.5 mm² to 4 mm². It features one level and twelve clamping points for connecting a single potential. The red housing is made of polyamide (PA66) for insulation.

Technical specifications
Pin number 12 pole
Cable cross-section 0.5-4.0 mm²
Rated voltage 1000 V
AWG cross-section AWG 20-12
Contact connection push-in
Rated current 96 A
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
