812-101 | WAGO

Terminal block, 12 pole, 0.5-4.0 mm², AWG 20-12, 96 A, 1000 V, push-in, 812-101

Order No.: 45P1900
EAN: 4044918253260
MPN:
812-101
Series: 812
812-101 WAGO Connecting Blocks

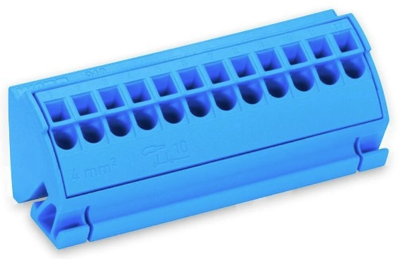

Image may differ
Unit Price (€ / pc.)
9.2344 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.2344 €

Common potential terminal block, 812-101, WAGO

Our common potential terminal block 812-101 ensures effortless electrical installations. Conductors should only be connected to this common potential terminal block if their strip length is 11 mm. This product features conductor terminals and utilizes Push-in CAGE CLAMP. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. The item's dimensions are 75 x 30 x 27.5 mm (width x height x depth. Depending on the type of conductor, this common potential terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 4 mm². It features one level and twelve clamping points that you can use to connect a single potential. The light gray housing is made of polyamide (PA66) for insulation.

Technical specifications
Pin number 12 pole
Cable cross-section 0.5-4.0 mm²
Rated voltage 1000 V
AWG cross-section AWG 20-12
Contact connection push-in
Rated current 96 A
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
