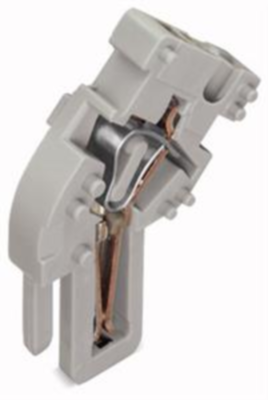

Female connector, 769-513, WAGO

Our female connector 769-513 ensures effortless electrical installations. Pluggable rail-mount terminal blocks are primarily found in switchgear units and control systems, most notably in railroad technology. These innovative systems combine the properties of rail-mount terminal blocks and connectors for a flexible and reliable wiring system. You also have the option of pre-assembling installations, which not only makes production but also installation, operation, and maintenance more efficient and cost-effective. Our pluggable rail-mount terminal block is rated for 500 V and is designed for use with a rated current of up to 32 A. Conductors should only be connected to this female connector if their strip length is between 8 mm and 9 mm. This product features conductor terminals and utilizes CAGE CLAMP. Our proven universal connection known as CAGE CLAMP is the industry standard when it comes to connection technology and electrical interconnections. Dimensions: 5 x 37.1 x 26.5 mm (width x height x depth. This female connector is suitable for conductor cross sections ranging from 0.08 mm² to 4 mm². The single potential can connect one pole using one clamping point The gray housing is made of polyamide (PA66) for insulation. This female connector/socket is operated with an operating tool. Conductors made of copper can be connected thanks to front-entry wiring.
