711-189 | WAGO

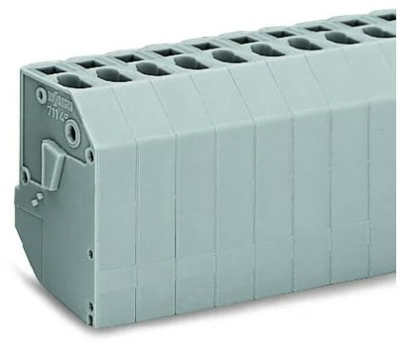

Transformer terminal block, 9 pole, straight, 25 A, 800 V, spring-cage connection, 711-189

Order No.: 44P1824
EAN: 4044918965453
MPN:
711-189
Series: 711
711-189 WAGO Connecting Blocks
Image may differ
Unit Price (€ / pc.)
7.6041 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.6041 €

Transformer terminal block, 711-189, WAGO

The transformer terminal 711-189 enables a simple and secure connection. This transformer clamp requires a stripping length of 9 to 10 mm for the conductor connection. CAGE CLAMP technology is used for this product. The CAGE CLAMP universal connection provides you with a reliable and maintenance-free connection technology for connecting all conductor types using a cage clamp. No pre-treatment of the conductors is necessary, for example by crimping on wire end ferrules. The dimensions are in width x height x depth (67.5 x 35 x 23.5) mm.

Technical specifications
Pin number 9 pole
Rated voltage 800 V
Design straight
Contact connection spring-cage connection
Rated current 25 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
