711-184 | WAGO
Transformer terminal block, 4 pole, straight, 25 A, 800 V, spring-cage connection, 711-184
Unit Price (€ / pc.)
3.4034 € *
Standard delivery time from the manufacturer is: 3 Weeks

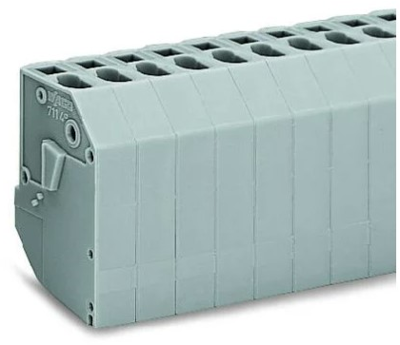

Transformer terminal block, 711-184, WAGO
The transformer terminal 711-184 enables a fast and reliable connection. Stripping lengths of 9 to 10 mm are required for the conductor connection with this transformer clamp. This product is based on CAGE CLAMP technology. The reliable and maintenance-free CAGE CLAMP universal connection makes it possible to connect all types of conductors with a cage clamp without the need to pre-treat the conductors. There is therefore no need to crimp on wire end ferrules. The dimensions are in width x height x depth (30 x 35 x 23.5) mm.
Technical specifications
Pin number | 4 pole | |
Rated voltage | 800 V | |
Design | straight | |
Contact connection | spring-cage connection | |
Rated current | 25 A |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85369010 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
