711-180 | WAGO

Transformer terminal block, 10 pole, straight, 25 A, 800 V, spring-cage connection, 711-180

Order No.: 44P1815
EAN: 4044918853873
MPN:
711-180
Series: 711
711-180 WAGO Connecting Blocks
Image may differ
Unit Price (€ / pc.)
8.4252 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
8.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.4252 €

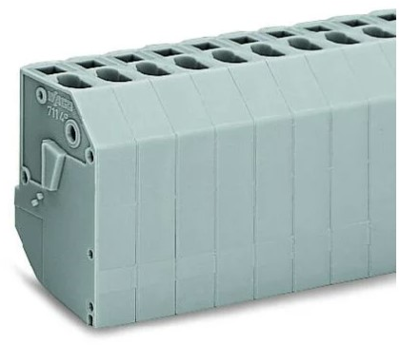

Transformer terminal block, 711-180, WAGO

The transformer terminal 711-180 enables a quick and reliable connection. This transformer clamp requires a stripping length of 9 to 10 mm for the conductor connection. This product is based on CAGE CLAMP technology. The reliable and maintenance-free CAGE CLAMP universal connection makes it possible to connect all types of conductors with a cage clamp without the need to pre-treat the conductors. There is therefore no need to crimp on wire end ferrules. The dimensions are width x height x depth (75 x 35 x 23.5) mm.

Technical specifications
Pin number 10 pole
Rated voltage 800 V
Design straight
Contact connection spring-cage connection
Rated current 25 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
