711-178 | WAGO

Transformer terminal block, 8 pole, straight, 25 A, 800 V, spring-cage connection, 711-178

Order No.: 44P1813
EAN: 4044918853859
MPN:
711-178
Series: 711
711-178 WAGO Connecting Blocks
Image may differ
Unit Price (€ / pc.)
5.3669 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.3669 €

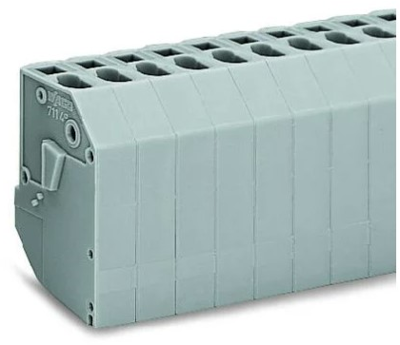

Transformer terminal block, 711-178, WAGO

This transformer terminal 711-178 focuses on a fast and secure connection. This transformer clamp requires a stripping length of between 9 and 10 mm for the conductor connection. CAGE CLAMP technology is used for this product. The reliable and maintenance-free CAGE CLAMP universal connection makes it possible to connect all types of conductors with a cage clamp without the need to pre-treat the conductors. There is therefore no need to crimp on wire end ferrules. The dimensions are in width x height x depth (60 x 35 x 23.5) mm.

Technical specifications
Pin number 8 pole
Rated voltage 800 V
Design straight
Contact connection spring-cage connection
Rated current 25 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
