711-175 | WAGO
Transformer terminal, 5 pole, straight, 25 A, 800 V, spring-cage connection, 711-175
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5.2717 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.27 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2717 €
10 pcs.
4.9028 €
50 pcs.
4.4625 €
100 pcs.
3.9270 €
500 pcs.
3.4510 €
*incl. VAT plus shipping costs
Subject to prior sale

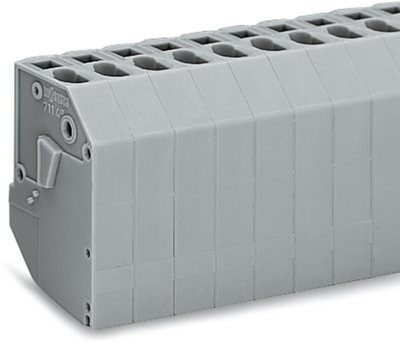

Transformer terminal block, 711-175, WAGO
The transformer terminal 711-175 enables a simple and reliable connection. Stripping lengths of 9 to 10 mm are required for the conductor connection with this transformer clamp. This product uses CAGE CLAMP technology. The proven and maintenance-free CAGE CLAMP universal connection enables the connection of all conductor types with a cage clamp. Pre-treatment of the conductors, e.g. by crimping on wire end ferrules, is not necessary. The dimensions are in width x height x depth (37.5 x 35 x 23.5) mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | transformer terminal | |
| Pin number | 5 pole | |
| Design | straight | |
| Rated current | 25 A | |
| Rated voltage | 800 V | |
| Contact connection | spring-cage connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
