711-159 | WAGO

Transformer terminal, 9 pole, straight, 25 A, 800 V, spring-cage connection, 711-159

Order No.: 45P8197
EAN: 4044918819633
MPN:
711-159
Series: 711
711-159 WAGO Connecting Blocks
Image may differ
Unit Price (€ / pc.)
9.4605 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.46 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4605 €
10 pcs.
8.7941 €
50 pcs.
7.9968 €
100 pcs.
7.0448 €
*incl. VAT plus shipping costs
Subject to prior sale

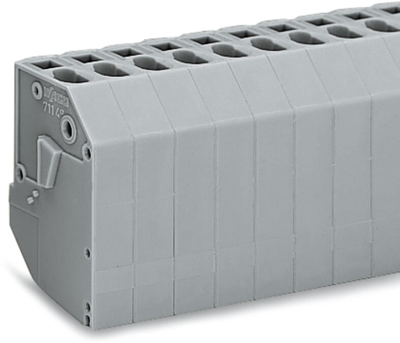

Transformer terminal block, 711-159, WAGO

The transformer terminal 711-159 enables a quick and reliable connection. Stripping lengths of 9 to 10 mm are required for the conductor connection with this transformer clamp. This product is based on CAGE CLAMP technology. The reliable and maintenance-free CAGE CLAMP universal connection makes it possible to connect all types of conductors with a cage clamp without the need to pre-treat the conductors. There is therefore no need to crimp on wire end ferrules. The dimensions are (67.5 x 35 x 23.5) mm in width x height x depth.

Technical specifications
Pin number 9 pole
Rated voltage 800 V
Design straight
Version transformer terminal
Contact connection spring-cage connection
Rated current 25 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
