711-152 | WAGO

Transformer terminal block, 2 pole, straight, 25 A, 800 V, spring-cage connection, 711-152

Order No.: 44P1797
EAN: 4044918819558
MPN:
711-152
Series: 711
711-152 WAGO Connecting Blocks
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6898 €

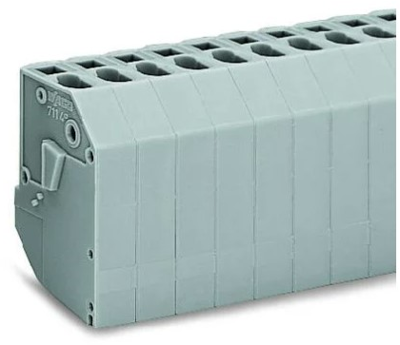

Transformer terminal block, 711-152, WAGO

The transformer terminal 711-152 enables a simple and reliable connection. Stripping lengths of 9 to 10 mm are required for the conductor connection with this transformer clamp. This product is equipped with CAGE CLAMP technology. The proven and maintenance-free CAGE CLAMP universal connection enables the connection of all conductor types with a cage clamp. Pre-treatment of the conductors, e.g. by crimping on wire end ferrules, is not necessary. The dimensions (15 x 35 x 23.5) mm are width x height x depth.

Technical specifications
Pin number 2 pole
Rated voltage 800 V
Design straight
Contact connection spring-cage connection
Rated current 25 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
