711-151 | WAGO
Transformer terminal, 1 pole, straight, 25 A, 800 V, spring-cage connection, 711-151
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9163 €
50 pcs.
0.8330 €
100 pcs.
0.7378 €
500 pcs.
0.6426 €
*incl. VAT plus shipping costs
**Subject to prior sale

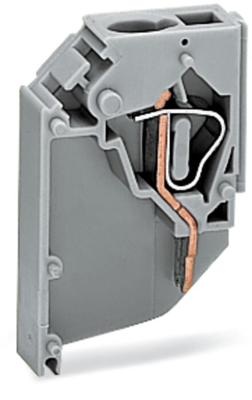

Transformer terminal block, 711-151, WAGO
The transformer terminal with article number 711-151 enables a quick and reliable connection. This transformer terminal requires a stripping length of 9 to 10 mm for the conductor connection. CAGE CLAMP technology is used for this product. The reliable and maintenance-free CAGE CLAMP universal connection makes it possible to connect all types of conductors with a cage clamp without the need to pre-treat the conductor. There is therefore no need to crimp on a wire end ferrule. The dimensions are 7.5 x 35 x 23.5 mm in width x height x depth. With this single terminal block, 1 potential / 1 pole can be connected via the 1 terminal point.
Technical specifications
| Version | Transformatorklemme | |
| Design | gerade | |
| Contact connection | Federkraftanschluss | |
| Rated voltage | 800 V | |
| Rated current | 25 A | |
| Pin number | 1-polig |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
