264-317 | WAGO

2-wire terminal, 1 pole, 0.08-2.5 mm², AWG 28-12, straight, 24 A, 800 V, spring-cage connection, 264-317

Order No.: 43P9914
EAN: 4044918415255
MPN:
264-317
Series: 264
264-317 WAGO Connecting Blocks
Image may differ
Unit Price (€ / pc.)
1.0234 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
10 pcs.
0.9401 €
50 pcs.
0.8568 €
100 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale

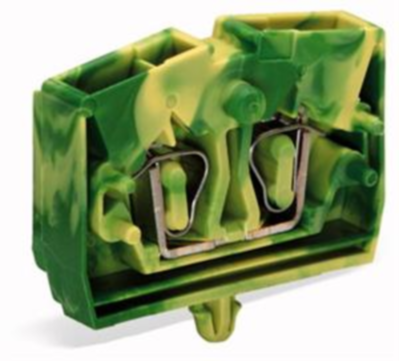

Ground terminal block, 264-317, WAGO

Our ground terminal block 264-317 is the ideal way to connect conductors quickly and securely. Our mini rail-mount terminal blocks are the perfect choice when space is limited. A large selection of mounting and actuation variants means you can find a suitable mini terminal block for every purpose. This also means you can adapt the terminal blocks to your unique requirements. Strip lengths must be between 8 mm and 9 mm when connecting conductors to this ground terminal block. Featuring conductor terminals along with CAGE CLAMP, this product outperforms the competition. Our proven universal connection known as CAGE CLAMP leads the way when it comes to connection technology and electrical interconnections. Depending on the type of conductor, this ground terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It comes with one level and two clamping points for connecting a single potential. The green-yellow housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. Conductors made of copper can be connected thanks to front-entry wiring.

Technical specifications
Pin number 1 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 800 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Rated current 24 A
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
