264-288 | WAGO

4-wire terminal block Ex e II, 8 pole, pitch 10 mm, 0.08-2.5 mm², AWG 28-12, straight, 23 A, 690 V, spring-cage connection, 264-288

Order No.: 43P9907
EAN: 4044918415903
MPN:
264-288
Series: 264

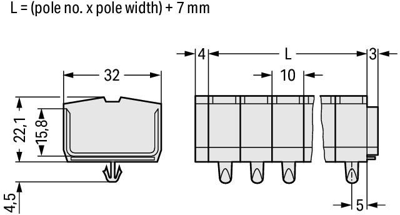

264-288 WAGO Connecting Blocks Image 1
264-288 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
8.4966 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
8.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.4966 €

Through terminal block, 264-288, WAGO

Our through terminal block 264-288 simplifies electrical installations. Whether for industrial or building applications, you can use our through terminal blocks to connect electrical conductors quickly and safely. We offer variants for both classic through-wiring and potential distribution. Ensure that the strip lengths are between 8 mm and 9 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes CAGE CLAMP. Our CAGE CLAMP connection provides a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It features one level and thirty-two clamping points that you can use to connect eight potentials / 8 poles. The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. Conductors made of copper can be connected via front-entry wiring.

Technical specifications
Pin number 8 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 690 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Grid 10 mm
Rated current 23 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
