264-280 | WAGO
4-wire terminal Ex e II, 1 pole, pitch 10 mm, 0.08-2.5 mm², AWG 28-12, straight, 23 A, 690 V, spring-cage connection, 264-280

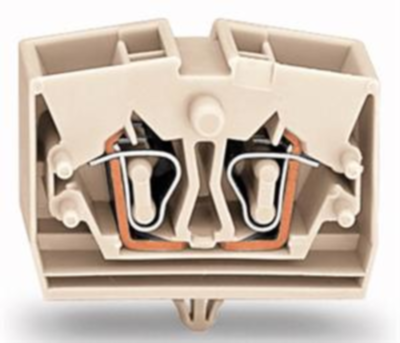

Through terminal block, 264-280, WAGO
Our through terminal block 264-280 ensures effortless electrical installations. Whether for industrial or building applications, you can use our through terminal blocks to connect electrical conductors quickly and safely. We offer variants for both classic through-wiring and potential distribution. Strip lengths must be between 8 mm and 9 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes CAGE CLAMP. Our CAGE CLAMP connection offers a reliable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It comes with one level and four clamping points for connecting a single potential. The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. The front-entry wiring allows you to connect copper conductors.
| Pin number | 1 pole | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 690 V | |
| Design | straight | |
| AWG cross-section | AWG 28-12 | |
| Contact connection | spring-cage connection | |
| Grid | 10 mm | |
| Rated current | 23 A |
| Country of origin | CH |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
