264-259 | WAGO

4-wire terminal strip, 9 pole, pitch 10 mm, 0.08-2.5 mm², AWG 28-12, straight, 24 A, 800 V, spring-cage connection, 264-259

Order No.: 43P9896
EAN: 4044918416078
MPN:
264-259
Series: 264

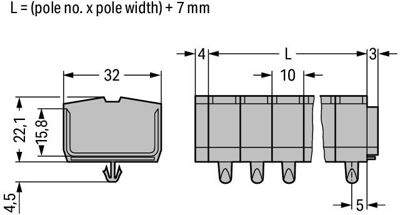

264-259 WAGO Connecting Blocks Image 1
264-259 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
9.1273 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.1273 €

Through terminal block, 264-259, WAGO

This through terminal block 264-259 is designed for quick and easy connections. Our mini rail-mount terminal blocks are perfect for tight spaces thanks to their compact design. You can also choose from a range of mounting and actuation variants, making it easy to select the ideal mini terminal block for each use. Our mini rail-mount terminal block is rated for 800 V and is designed to handle a rated current of up to 24 A. Conductors should only be connected to this through terminal block if their strip length is between 8 mm and 9 mm. This product incorporates conductor terminals and utilizes CAGE CLAMP. Our tried-and-tested universal connection known as CAGE CLAMP is industry-leading when it comes to connection technology and electrical interconnections. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It features one level and thirty-six clamping points that you can use to connect nine potentials / 9 poles. The gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. You can connect copper conductors thanks to front-entry wiring.

Technical specifications
Pin number 9 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 800 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Grid 10 mm
Rated current 24 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
