264-252 | WAGO

4-wire terminal strip, 2 pole, pitch 10 mm, 0.08-2.5 mm², AWG 28-12, straight, 24 A, 800 V, spring-cage connection, 264-252

Order No.: 43P9889
EAN: 4044918416009
MPN:
264-252
Series: 264

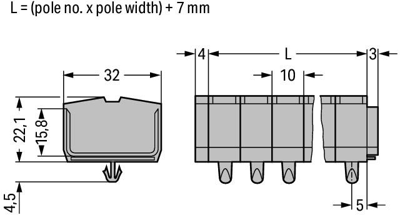

264-252 WAGO Connecting Blocks Image 1
264-252 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.3324 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.3324 €

Through terminal block, 264-252, WAGO

This through terminal block 264-252 streamlines wire connections, making them both quick and easy. Our mini rail-mount terminal blocks are perfect for tight spaces thanks to their compact design. You can also choose from a range of mounting and actuation variants for unparalleled flexibility, making it easy to select the ideal mini terminal block for each use. This mini rail-mount terminal block has a rated voltage of 800 V and can handle currents up to 24 A. Strip lengths must be between 8 mm and 9 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes CAGE CLAMP. Our reliable and maintenance-free CAGE CLAMP connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don't need to crimp ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It has one level. You can connect two potentials / two poles using the eight clamping points. The gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. You can connect copper conductors thanks to front-entry wiring.

Technical specifications
Pin number 2 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 800 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Grid 10 mm
Rated current 24 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
