264-242 | WAGO

4-wire terminal block Ex e II, 12 pole, pitch 10 mm, 0.08-2.5 mm², AWG 28-12, straight, 23 A, 690 V, spring-cage connection, 264-242

Order No.: 43P9888
EAN: 4044918415767
MPN:
264-242
Series: 264

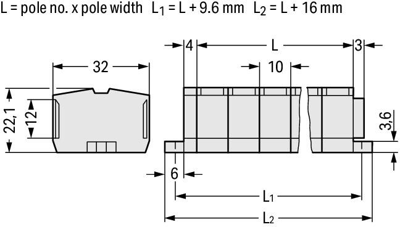

264-242 WAGO Connecting Blocks Image 1
264-242 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
12.0666 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
12.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.0666 €

Through terminal block, 264-242, WAGO

Quick and easy connections are guaranteed with this through terminal block 264-242. Our mini rail-mount terminal blocks are perfect for working in tight spaces thanks to their compact design. With various mounting and actuation options, they offer maximum flexibility. Ensure that the strip lengths are between 8 mm and 9 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes CAGE CLAMP. Our CAGE CLAMP connection provides a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the type of conductor, this through terminal block is ideal for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It has one level. Twelve potentials can connect twelve poles using the forty-eight clamping points The light gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. You can connect copper conductors via front-entry wiring.

Technical specifications
Pin number 12 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 690 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Grid 10 mm
Rated current 23 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
