264-190 | WAGO

2-wire terminal block Ex e II, 10 pole, 0.08-2.5 mm², AWG 28-12, straight, 23 A, 690 V, spring-cage connection, 264-190

Order No.: 43P9860
EAN: 4044918423335
MPN:
264-190
Series: 264
264-190 WAGO Connecting Blocks Image 1

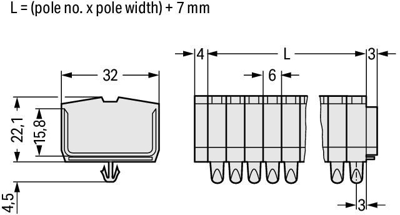

264-190 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.9615 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.9615 €

Through terminal block, 264-190, WAGO

Our through terminal block 264-190 is designed for seamless electrical installations. Whether in industrial or building applications, our rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the version, you can use them for either typical through-wiring or potential distribution. Conductors can only be connected to this through terminal block if their strip length is between 8 mm and 9 mm. This product incorporates conductor terminals and utilizes CAGE CLAMP. Our highly-rated and maintenance-free CAGE CLAMP connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It features one level and twenty clamping points that you can use to connect ten potentials / 10 poles. The light gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. Conductors made of copper can be connected thanks to front-entry wiring.

Technical specifications
Pin number 10 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 690 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Rated current 23 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
