264-189 | WAGO

2-wire terminal block Ex e II, 9 pole, 0.08-2.5 mm², AWG 28-12, straight, 23 A, 690 V, spring-cage connection, 264-189

Order No.: 43P9859
EAN: 4044918423328
MPN:
264-189
Series: 264

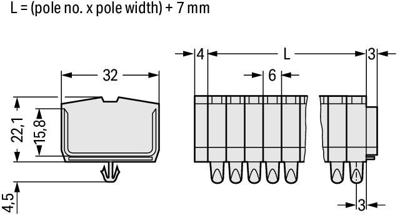

264-189 WAGO Connecting Blocks Image 1
264-189 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.2951 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.2951 €

Through terminal block, 264-189, WAGO

This through terminal block 264-189 is designed to connect conductors quickly and easily. Our mini rail-mount terminal blocks are perfect for tight spaces thanks to their compact design. You can also choose from a range of mounting and actuation variants for unparalleled flexibility, making it easy to select the ideal mini terminal block for each use. Ensure that the strip lengths are between 8 mm and 9 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes CAGE CLAMP. Our trusted universal connection known as CAGE CLAMP is the industry standard for connection technology and electrical interconnections. Depending on the conductor type, this through terminal block is ideal for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It has one level. Nine potentials can connect nine poles using the eighteen clamping points The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. The front-entry wiring makes it possible to connect copper conductors.

Technical specifications
Pin number 9 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 690 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Rated current 23 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
